Ürün ayrıntıları

Evde > Ürünler >

DC EV Şarj Cihazı

120kW DC Fast EV Charger with Smart Power Distribution and IP54 Protection

Tüm Kategori

Mobil elektrikli araba şarj cihazı

120kW DC Fast EV Charger with Smart Power Distribution and IP54 Protection

Marka Adı:	Mckee Charging
Model Numarası:	CLF-DC120KW
Moq:	1
fiyat:	Negotiate
Paketleme Ayrıntıları:	Tahta sandık ambalajı
Ödeme Şartları:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Luoyang, Çin

Sertifika:

Menşe yeri:

Luoyang, Çin

Sertifika:

Çıkış voltajı:

200-750V

Güç:

120kw

Güvenlik:

Kısa devre, sızıntı ， aşırı akım

Giriş Gerilimi:

380V±15%

Yeterlik:

>94%

Çalışma Sıcaklığı:

-30℃-+55℃

Vurgulamak:

Yüksek Verimli DC EV Şarj Cihazı, Akıllı Güç Dağıtımı DC Hızlı Şarj Cihazı, Aşırı Sıcaklıklara Uygun

Vurgulamak:

Smart Power Distribution DC EV Charger

Intelligent Power Distribution DC Fast EV Charger

Extreme Temperatures EV Charging Station

Ürün Tanımı

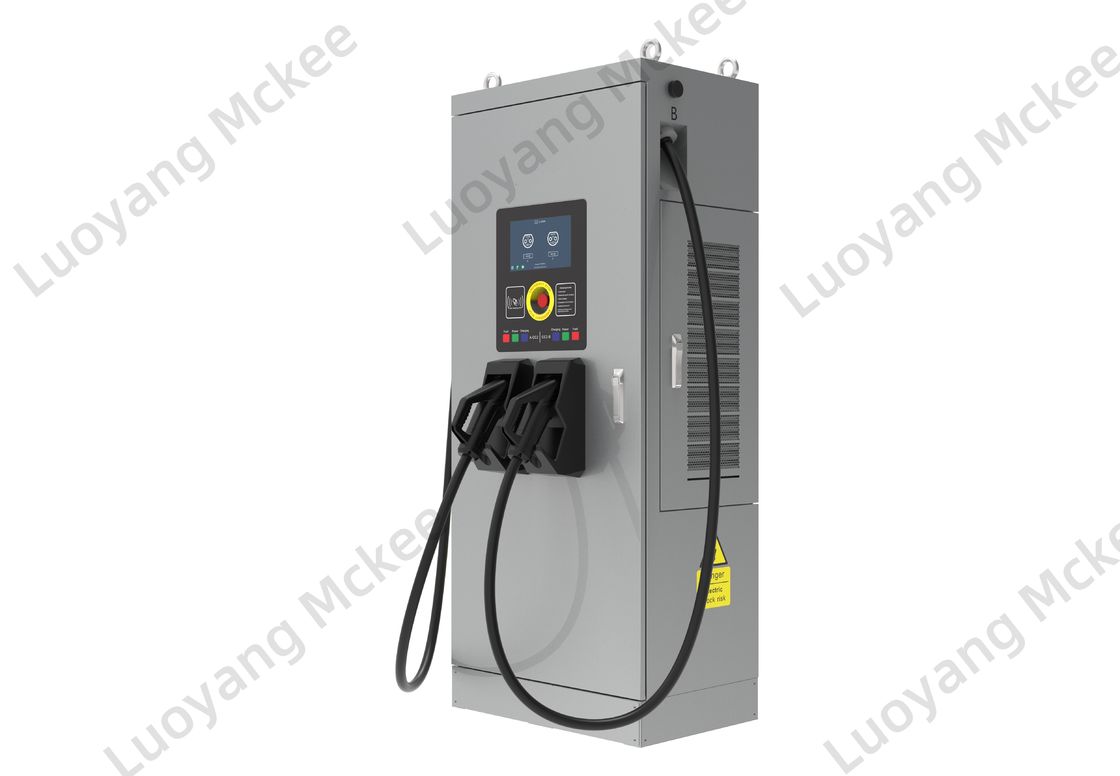

120kW DC Fast EV Charger with Smart Power Distribution and IP54 Protection

The Mckee DC Fast EV Charger is an advanced, high-performance charging solution engineered for the new era of electric mobility. Designed with power configurations ranging from 60kW to 180kW, it provides rapid, stable, and intelligent DC charging for electric cars, buses, and commercial fleets.

Equipped with intelligent power distribution, it supports both single-gun rapid charging and multi-gun simultaneous operation, automatically balancing current for optimal efficiency. The system communicates directly with the vehicle's Battery Management System (BMS) to ensure fast, safe, and energy-efficient charging that protects battery health.

Built with a reinforced steel enclosure and an IP54-rated protection system, this charger performs reliably in harsh outdoor conditions. Fully compliant with GB/T 20234.3-2015, GB/T 18487.1-2015, and GB/T 27930-2015, it guarantees long-term reliability and stability in bus depots, taxi fleets, public charging parks, and highway service stations.

Product Features

Industrial-grade durability - Heavy-duty floor-mounted steel cabinet with anti-corrosion coating and IP54 protection for outdoor use.
Flexible configuration - Supports single or multi-gun charging with intelligent power allocation and load management.
Comprehensive safety - Overvoltage, overcurrent, insulation fault, and emergency stop protection for secure operation.
Smart interface - Real-time monitoring and data display through HMI touchscreen for efficient operation.
Wide compatibility - Compatible with CCS1, CCS2, CHAdeMO, and GB/T standards for maximum flexibility.

Technical Parameters

Place of Origin	Luoyang, China
Output Power	120KW
Interface Standard	CCS1 / CCS2 / CHAdeMO / GB/T
Output Current	250A
Input Voltage	380V
IP Grade	IP54
Warranty	2 Years
Function	Energy Vehicle DC Charging
Advantage	APP Control, RFID Card Optional
Cable length	5 Meters, support customized

Applications

The Mckee DC Fast Charger is ideal for:

Public Charging Stations - Reduce queue time and boost operational efficiency.
Fleet Depots & Logistics Centers - Keep large fleets fully powered on tight schedules.
Commercial Parking Lots & Retail Areas - Offer high-speed charging as a value-added service.
Highway Rest Stops - Enable long-distance EV travel with rapid charging capability.

With high power efficiency (≥94%), intelligent control, and reliable structure, this charger is built for continuous operation and low maintenance, providing businesses with a long-term, profitable solution.

FAQ

Q1: What standards are supported?

A1: The charger supports CCS1, CCS2, CHAdeMO, and GB/T standards, ensuring full global compatibility.

Q2: Can it be used outdoors?

A2: Yes. With IP54 protection, it operates safely in rain, dust, and temperature extremes.

Q3: What power configurations are available?

A3: Available in 60kW, 120kW, and 180kW models, suitable for various commercial applications.

Q4: What payment and control options are supported?

A4: Supports APP control, RFID card, and OCPP communication for cloud-based operation and monitoring.

Q5: How is product quality ensured?

A5: All Mckee chargers comply with GB and CE certifications. OEM/ODM customization is available upon request.
