Mobil elektrikli araba şarj cihazı

26kWh Portable Energy Storage Bank, Mobile Charger for Electric Vehicles

Tüm Kategori

Mobil elektrikli araba şarj cihazı

Ev Şarj Modülü

Bize Ulaşın

Ms. Vivian

+8618638351180

Şimdi iletişime geçin

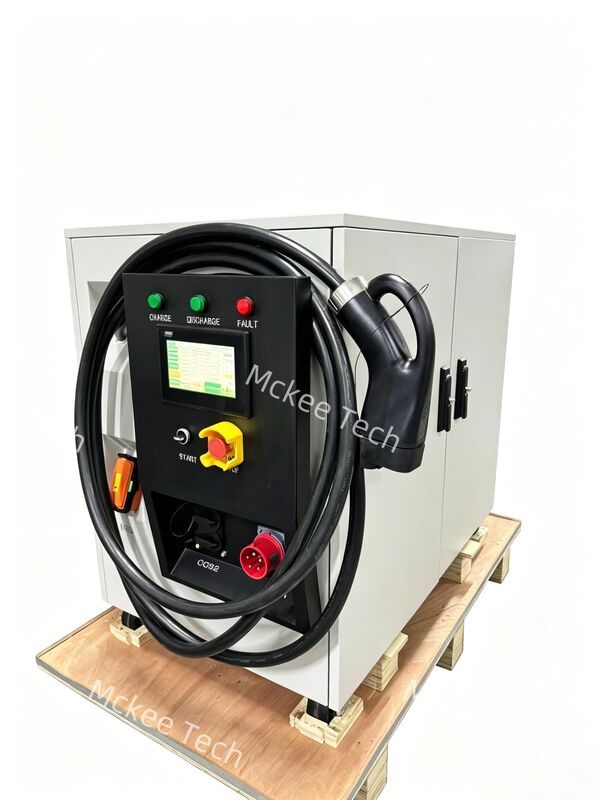

26kWh Portable Energy Storage Bank, Mobile Charger for Electric Vehicles

Marka Adı:	Mckee Charging Cube
Model Numarası:	CLF-DC 26kWh
Moq:	1
fiyat:	Negotiate
Paketleme Ayrıntıları:	Tahta sandık ambalajı
Ödeme Şartları:	D/A,D/P,T/T,Western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Luoyang, Çin

Sertifika:

Arayüz Standardı:

CCS1 / CCS2 / CHAdeMO / GBT

Elektrik akımı:

250A / 600A

Giriş voltajı:

327V - 456V AC

Çıkış voltajı:

50V - 1000V

Giriş Frekansı:

45Hz - 65Hz

Su Geçirmez Seviye:

IP54

Verimliliğin zirvesi:

≥ %95,5

Ağ protokolü:

OCPP 1.6J

Vurgulamak:

26kWh portable EV charger

mobile energy storage for electric vehicles

portable EV charger with high capacity

Ürün Tanımı

This product is a portable charging system used for emergency charging of electric vehicles, providing short-term charging for new energy vehicles. It can be charged using both AC and DC. The product has a capacity of 26 kWh and an output power of 30 kW, with the option to customize larger capacities and output power.

Parameter	Specification	Parameter	Specification
Electric Current	250A / 600A	Input Voltage	327V-456Vac
Power Range	Complete: 0-2400A Single circuit: 0-25A Super-charging: 0-600A	Output Voltage	50V-1000V
Protection Rating	IP54	Input Frequency	45Hz-65Hz
Operating Temp.	-30~85℃ (Derated above 50℃)	Power Factor	≥0.99
Operating Humidity	5%-95% (Non-condensing)	Peak Efficiency	≥95.5%
Max. Altitude	≤2000m	Output Routes	Max 12 (Compatible 6/8/10)
Safety Features	Short circuit / Leakage / Overcurrent / Emergency Stop	Material	PC Flame-retardant
Interfaces	RFID / Swipe Card / GPRS / RS485 / CAN / Ethernet	Cable Length	5m / 10m
Communication Protocol	OCPP 1.6	Main Unit Dimensions	1355 × 995 × 2000 mm
Packaging	Wooden Case	Terminal Dimensions	325 × 450 × 1430 mm

26kWh Portable Energy Storage Bank, Mobile Charger for Electric Vehicles 2

26kWh Portable Energy Storage Bank, Mobile Charger for Electric Vehicles 3

FAQ

Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC charging posts usually need to be customized according to the customer's technical parameters.

Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be determined before production, and the prototype time is usually 30 days.

Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for operating companies.

Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.

Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.

NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
